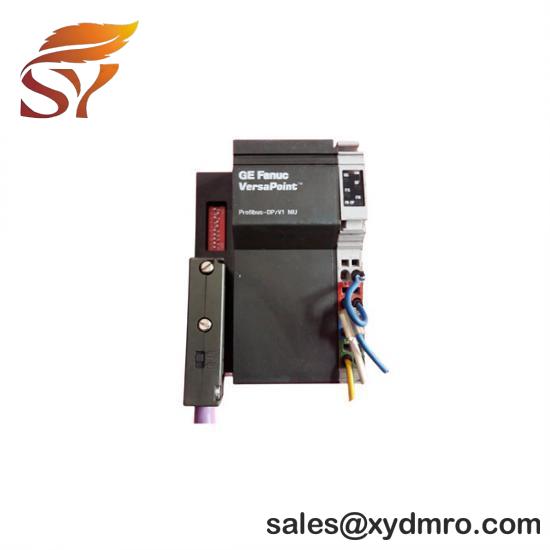

Emerson IC220PBI002VP Profibus DP V1 Network Interface Unit for VersaPoint I/O

Data Rate:Up to 12 Mbits/s

Nominal Power Input Voltage:24 VDC

Power Voltage Range:19.2-30 VDC

Maximum Power Input:8 amperes

Supported Modules:63

Protection Rating:IP20

Storage Temperature Range:-13°F to 185°F

Operating Temperature Range:-13°F to 131°F

Humidity Range:Non-condensing, 5% minimum

    The Emerson IC220PBI002VP Profibus DP V1 Network Interface Unit is a robust solution designed for high-performance industrial applications. With its ability to support up to 63 modules and achieve data rates of up to 12 mbits per second, this interface unit ensures seamless integration within your VersaPoint I/O system. It operates efficiently within a wide range of temperatures and humidity levels, making it suitable for diverse environmental conditions. This unit does not support firmware upgrades, ensuring a secure and stable connection without the risk of unauthorized modifications. Its compact design includes connections for two digital sensors, along with diagnostic and status indicators, enhancing its operational efficiency and reliability. The module’s power input is rated at 24 VDC, with a tolerance range from 19.2 to 30 VDC, providing flexibility in power supply options. Compliant with IP20 protection standards as per IEC 60529, the Emerson IC220PBI002VP offers a reliable barrier against dust and accidental contact, ensuring safe and consistent operation.
